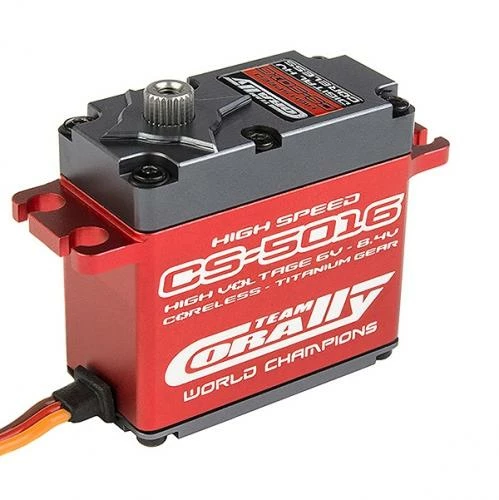

CORALLY CS5016 HV HIGH SPEED SERVO HIGH VOLT CORELESS MOTOR TITANIUM/BALLBEARING/ALLOY CASE

Are looking for some powerful control?

We have developed these servos with the racer in mind, ultimate digital power, precision and reliablity.

Features

• Full CNC machined alloy case
• High Voltage 6.0 – 8.4V
• Titanium gears
• Ball Raced
• Coreless motor
• Ultra high speed and torque
• Water resistant

Specifications

Motor Type: Coreless Motor
Servo Technology: Digital Ultra High Voltage
Input Voltage (V): 6.0V – 8.4V
Weight (g): 72 g
Servo Type / Size: Standard
Length (mm): 40.5 mm
Gear Material: Titanium Gears
Width (mm): 20.5 mm
Ball Beared: Ball Beared
Height (mm): 36.0 mm
Servo Case: CNC Alloy
Servo Power – Torque Kg/cm: 16 – 25 Kg/cm
Servo Speed 60°/sec: 0.05 – 0.10 Sec/60°
Protection: Waterproof
Speed 60°/Sec @ 6.0V: 0.07 Sec/60°
Speed 60°/Sec @ 7.4V: 0.06 Sec/60°
Speed 60°/Sec @ 8.4V: 0.05 Sec/60°
Torque kg/cm @ 6.0V: 11.8 Kg/cm
Torque kg/cm @ 7.4V: 14.4 Kg/cm
Torque kg/cm @ 8.4V: 16.5 Kg/cm
Connector type: JR
Spline size: 25T Spline
Thermal Protection Temperature: Waterproof
Water Protection: Waterproof

Spec

• Brand: Corally
• Part No: C-52000
• Barcode: 8718057120757
• Fitment: Standard Part
